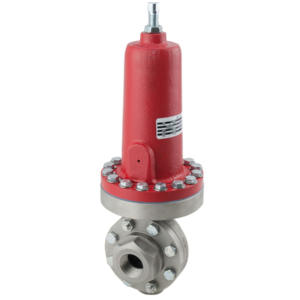

Elite model RFT is a 316ss self acting pressure sustaining valve suitable for fluids & gasses.
Available in ½” → 2″ (Cv’s from 2.4 to Cv25) and the main materials are 316SS with NBR or Viton diaphragm and seals.
Valve has threaded BSP female ends.
Maximum inlet pressure-2500 kpa (362 psi)
Maximum temp- 100°C or 180°C
Adjutable pressure ranges – 100-500 kpa; 400-1,000 kpa
* Options: NPT, all 316SS adjusting bolt/locknut, pressure gauge
