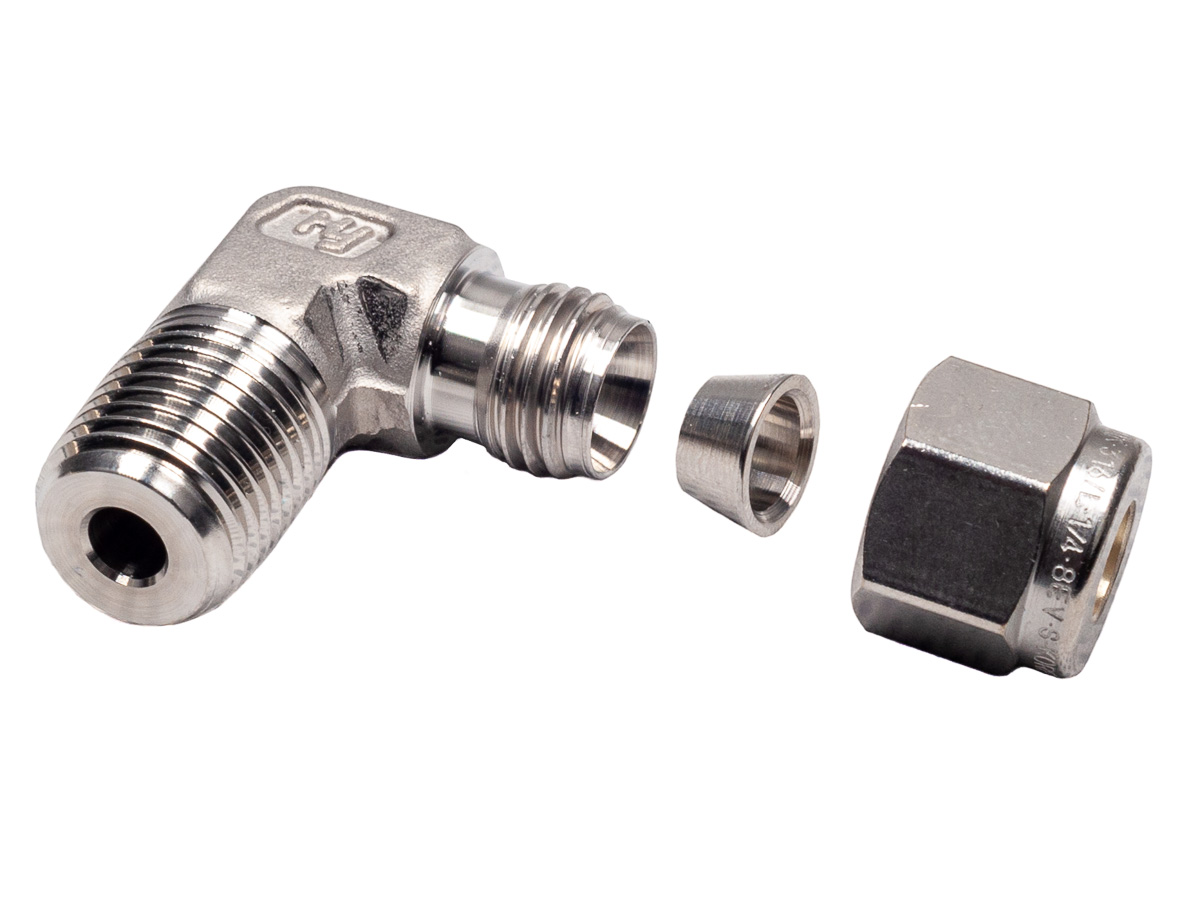

Hylok model CLMA is a male elbow…used to join a fractional (⅛”, ¼” etc) stainless steel tube to a female NPT fitting. The data sheet list all of the options but the common fitting used for actuation assemblies is as follows:-
CLMA 4-4N (¼” tube x ¼”male NPT thread)
* Options: BSP connection (CLMA 4-4R); Brass fitting (CLMA 4-4N-BRAS)
Technical Specifications| Brand | Hylok |
| Model | CLMA-N |
| Type | Pneumatic Accessory - Fitting |
| Body Style | Male Elbow (Fractional Tube to Male NPT) |
| Size Range | 1/16" - 2" |
| End Connections | Fractional Tube x Female NPT (BSP available upon request) |
Material Specifications| Body | 316 Stainless Steel |
Downloads
Hylok CLMA-N / CMC-N Tech Sheet
