Shearseal Knifegate valve for general service and heavy duty applications, wafer (through holes) or lugged body design, bi-directional, split body design, bonnetless, non-rising stem, 4-bolt stuffing box, cast or ductile iron body, 316SS blade, nitrile resilient seat (o-ring cord design) for bubble tight shut-off, handwheel operated

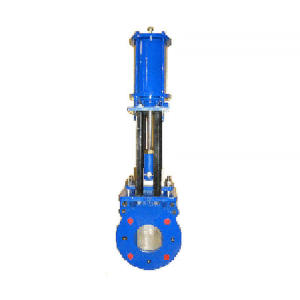

* Options: WCB Body, High Pressure Modifications to 18 bar , Gator, Deflection Cone, Air cylinder, Limit Switches, Gear Operators, seal options such as Viton, Silicon, PTFE, various Blade (Gate) options such as 304SS, Hastelloy C, abrasion resistant steel
Technical Specifications| Brand | Shearseal |
| Model | S1 |
| Type | Knife Gate Valve |
| Size Range | 2" (DN50) - 24" (DN600) |
| Pressure Rating | Up to 10 Bar |
| End Connections | Flanged to suit ANSI, AS2129 & DIN Standards |
| Operator Options | Hand Wheel Pneumatic Hydraulic |
Material Specifications| Body | SG Iron (Standard), Mild Steel |
| Gate | 316 Stainless Steel |
| Seat | Nitrile, EPDM, Polyurethane, Viton, Neoprene, PTFE |
| Packing | Composite |
